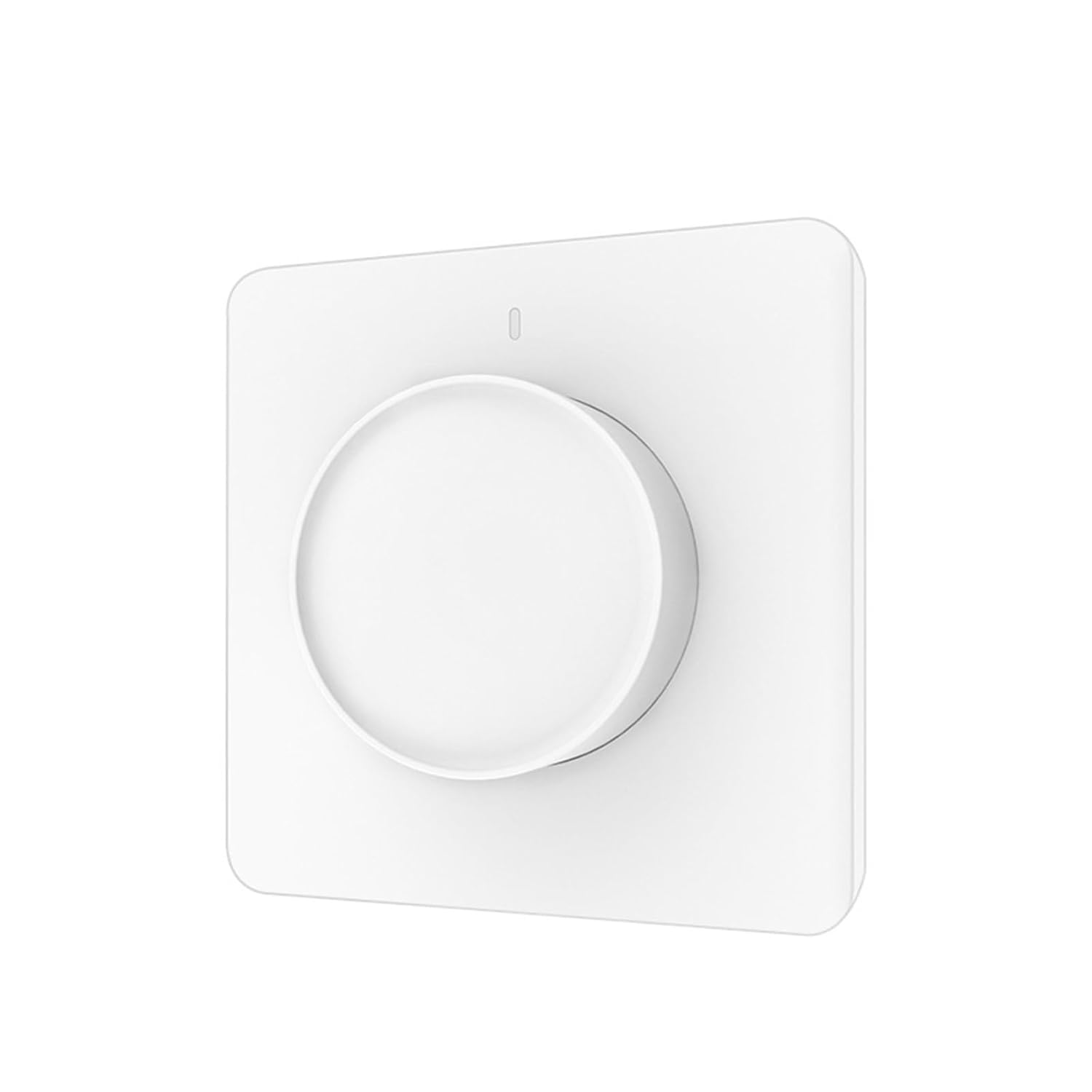

Dimmer Switch EDM-1ZBA-EU
• Seamless control for LED, CFL, and incandescent lighting
• Voice control
• Group control
• APP remote control
• Stepless rotate control
• Mechnical on/off switch
• Soft on/off
- Description
Description
| Physical Property | |
| Communication | ZigBee 3.0 |
| Dimming Control | Trailing Edge |
| Inductive Load(LED/CFL) | ＜200W |
| Resistive Load(Incandescent) | ＜300W |
| Input Power | 100~240 AC 50/60Hz |
| Standby Power | ≤0.5W |
| Control Channel | 1 CH |
| Dimension | 86 x 86 x 53.5 mm (with base) |
| Life Cycle | 50,000 times |
| Working Temperature | -10℃ – +45℃ |
| Working Humidity | <90％ |
